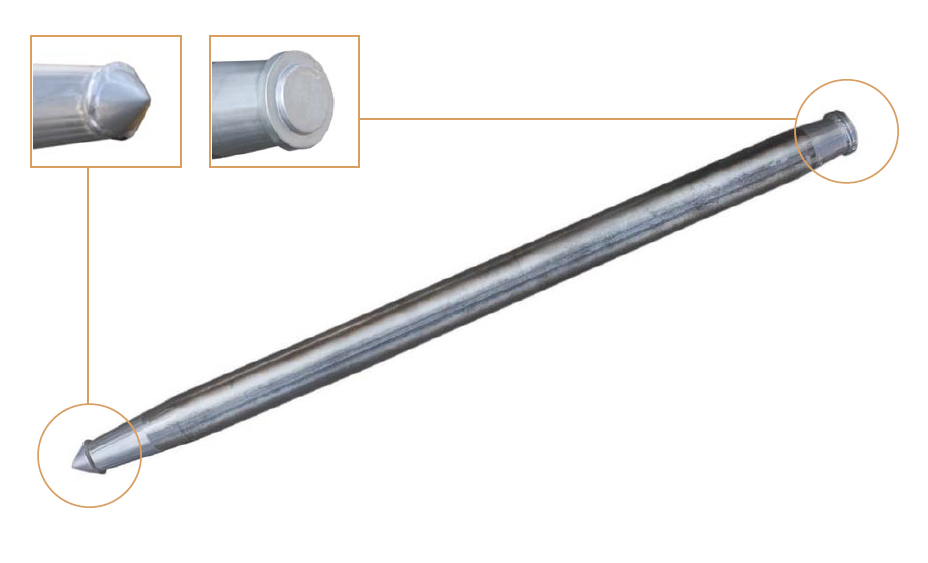

SMART POST
Custom solutions for steel structure supports and mounts -Solarscapes, shade structures and carportsSMART POST
| SMART POST | ||||
|---|---|---|---|---|
| L | 700 | 1,100 | 1,500 | 2,000 |
| Ø | 42.7 | 42.7 | 42.7 | 42.7 |
Characteristics of Smart Post
| Category | Steel pipe | Smart Post |
|---|---|---|
| Strengths | 1. Most workers are familiar with this product. 2. It is very convenient because normal steel pipes are cut and used. |
1. This product has standardized specifications as per construction
site is conditions. 2. Its constructability is 1.7-times faster than that of a steel pipe under normal compaction conditions. 3. It is very durable and can be reused. In addition, it has high support strength and hence can be firmly fixed. 4. It is easy to install on the normal ground. |
| Weaknesses | 1. Once it is used as a support pipe, it cannot be
reused. 2. If a construction site is soils is firm, corresponding installation time will be lengthened. |
1. Additional costs are incurred for separate materials other than steel
pipes. 2. This product is unfamiliar to most workers. |
(Test Results) Drilling Capacity in Generally-compacted Soil
A. Smart Post 1.5m-drilling
B. Short-tube pipe 2m-drilling
C. Drilling results
| Drilling depth | Time | mm/sec | Drilling depth | Time | mm/sec |
|---|---|---|---|---|---|
| 800mm | 27sec | 29.6 | 800mm | 46sec | 17.4 |
| 600mm | 17sec | 35.3 | 400mm | 21sec | 19.0 |
| Smart Post average | 32.5 | Steel pipe average | 18.2 | ||
