Tested to stop a 2,270kg
pick up truck traveling @ 60km/h
Free Standing * Anchor-less
Installation time: 2 minutes per bollard

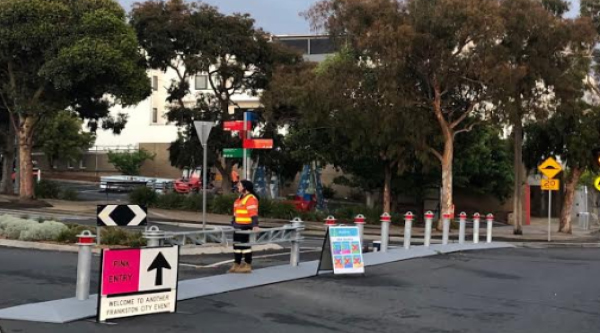

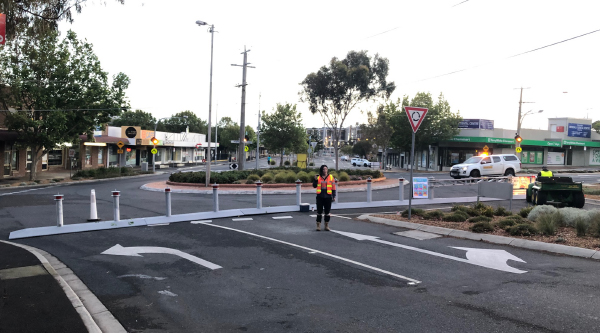

Protects the public from terrorists
and errant drivers while
allowing free flow of foot traffic

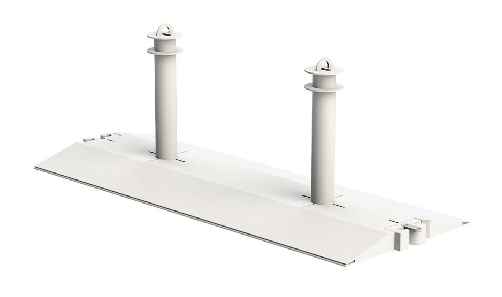

Omni Stop Portable Security Bollard has been independently crash tested to confirm it can stop a 2270kg pick up truck traveling at 60km/h. For full details, refer to NATA test report 21140 01. The test was conducted with the minimum required deployment of 5 bollard units, with a total length of 15m (49.2ft). In accordance with MASH Clause 5.2, the bollard yielded predictably with no fragmentation, and the vehicle was contained with 3.52m (11.5ft) of deflection

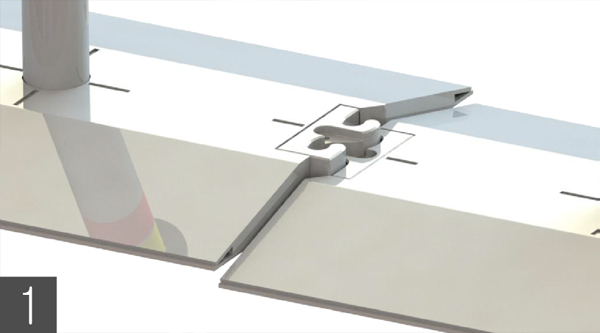

1. Bollard units are aligned by an integrated, interlocking connector, which simply slides together when lowered into position.
2. The bollards are bi-directional, allowing to be installed in either orientation.

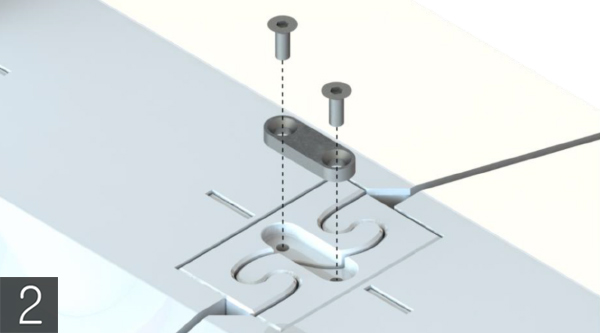

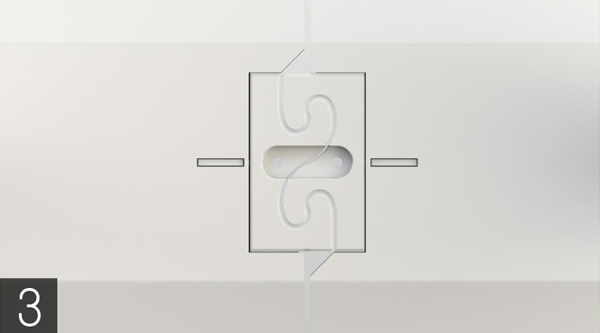

3. The units are then fastened with a small joiner plate that is bolted into the joiner with an M20 bolt.

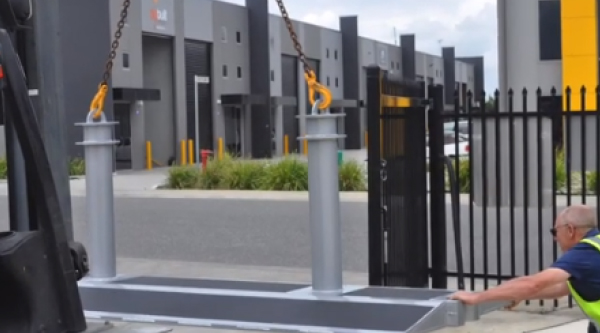

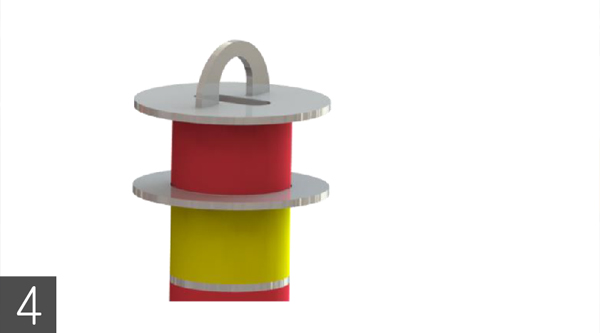

4. Bollard units feature 2 integrated lifting hoops which can be used to safely position the bollard into place.
