CABLE TRAY
Coil slitting services with the closest tolerances Custom steel processing services and parts manufacturing

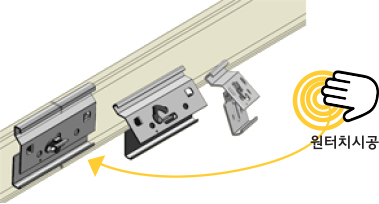

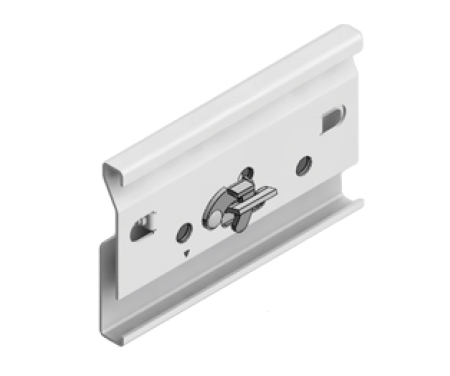

CLAMP
Allows for assembly without any nuts, bolts or tools. One touch clamp fastening allows for easy installation, adjustment or removal using simply the fastener clamp and your hands.

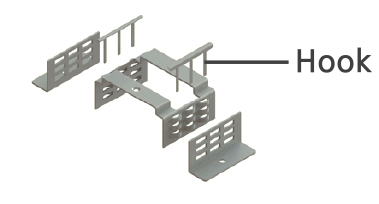

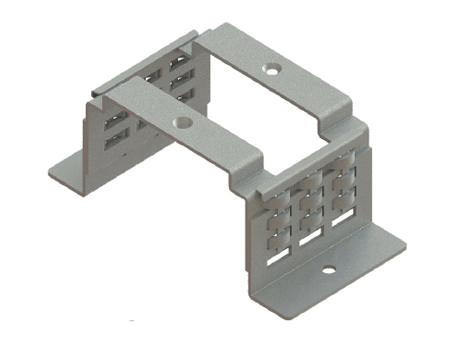

SUPPORT
Provides height adjustment from 80 mm to 200 mm. Supports are installed fastener free using hooks

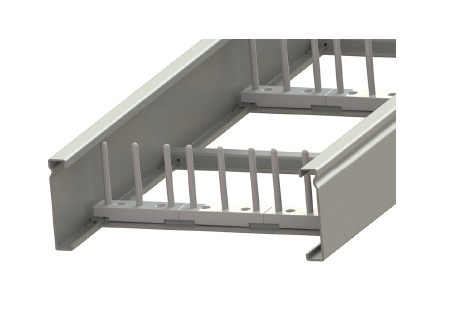

CABLE DIVIDER
Cable divider can be easily installed onto cable trays to organize and divide cables and avoid tangles. Can be necessary for cable separation when creating multiple cable pathways.

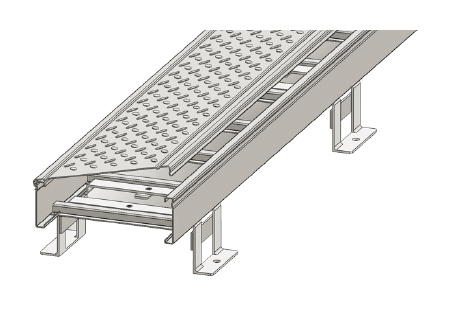

COVER
Perforated and solid bottom cable tray covers are available for straight sections and fittings to provide cable protection in any application. Multiple styles of cover clamps are also available to maximize flexibility.

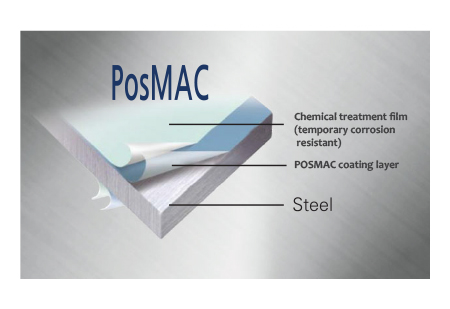

MATERIAL
A variety of materials and finishes are available to support any commercial and industrial cable support application requirement. For optimal corrosion resistance and durability, POSCO¡¯s PosMAC is used, as its Magnesium Aluminium alloy coating weight is equal to that of Hot-dip galvanized steel or GI but is 5-10 times more corrosion resistant.

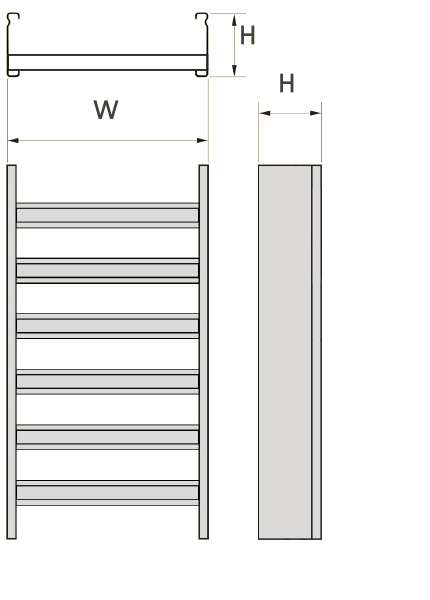

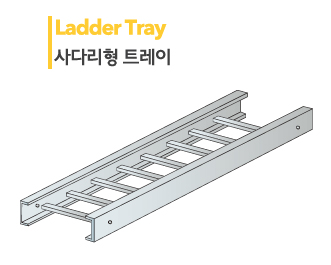

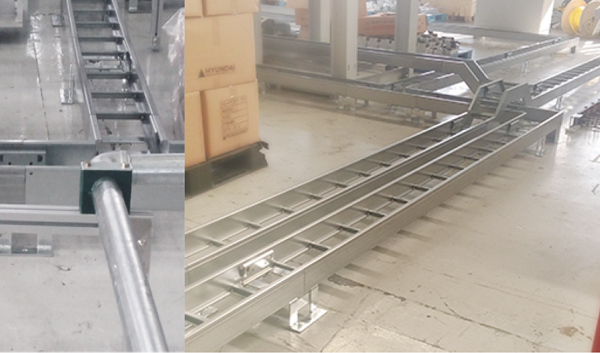

Ladder Tray (Floor Type)
Ladder Tray Section
| Dimensions of each part (Unit: mm) | |||
|---|---|---|---|
| W(with) | L(length) | H(height) | Rung Spacing |
| 120 | 2,400 | 100,150 | 200,300 |
| 200 | |||
| 300 | |||
| 400 | |||
| 500 | |||
| 600 | |||
| 700 | |||
| 800 | |||
| 900 | |||
| 1000 | |||

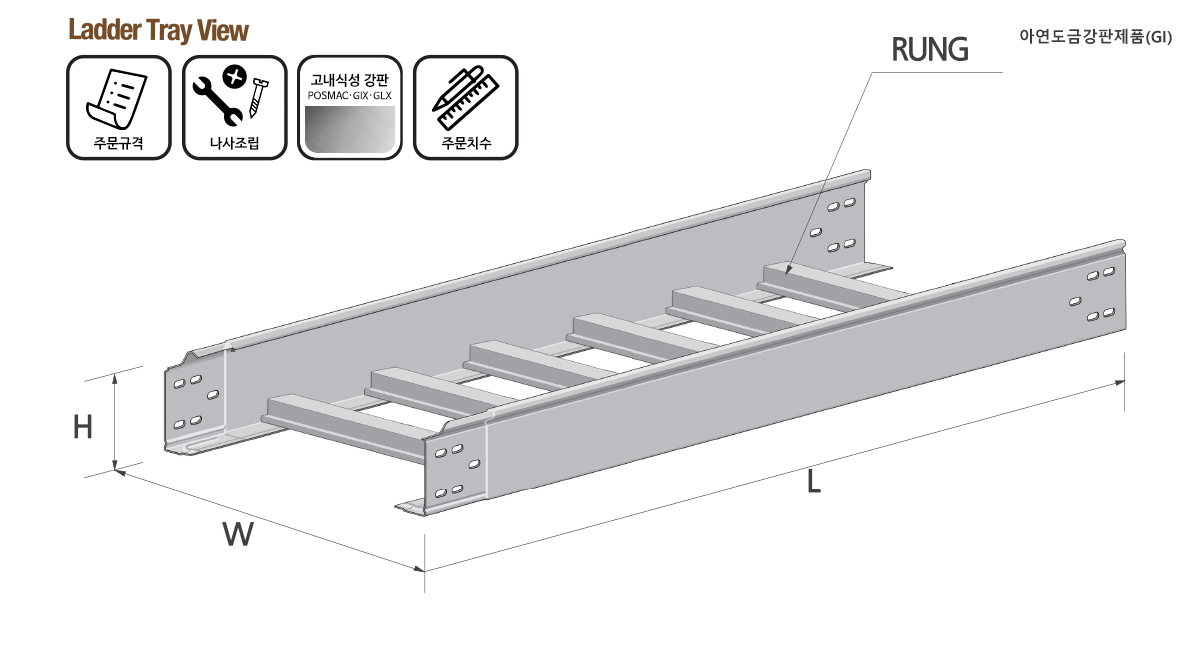

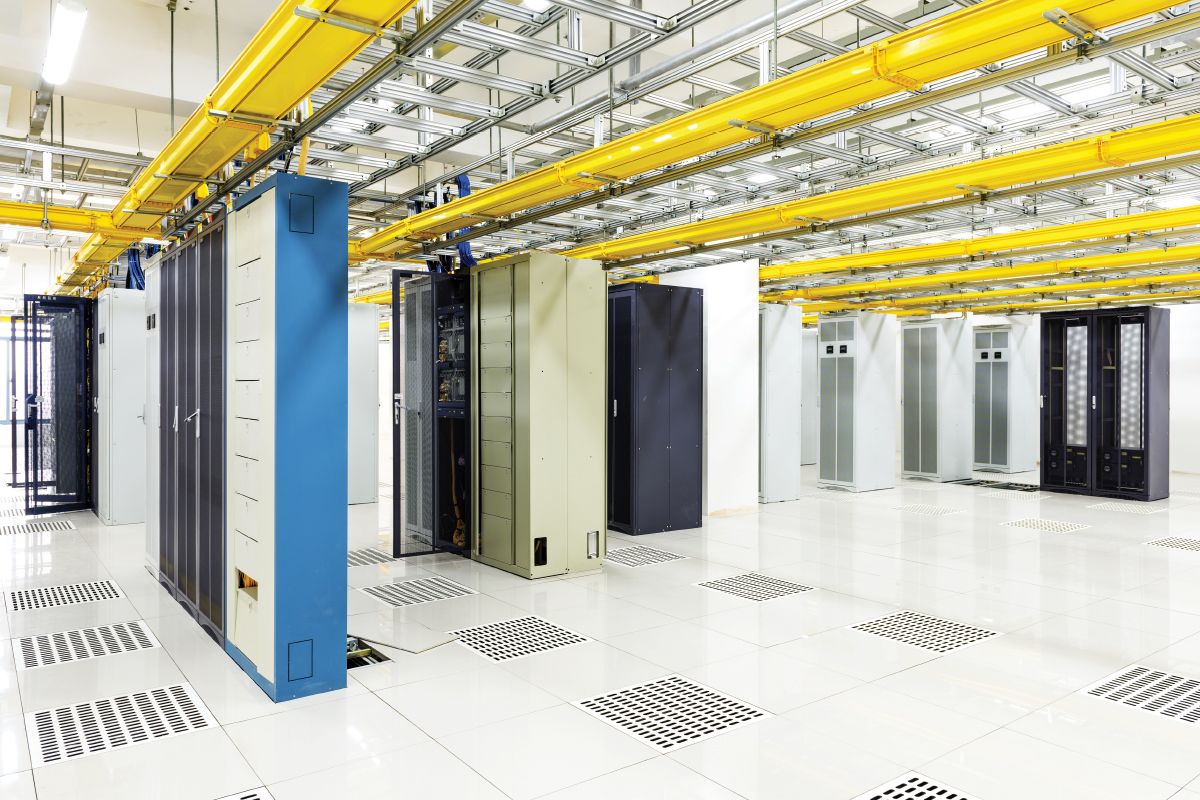

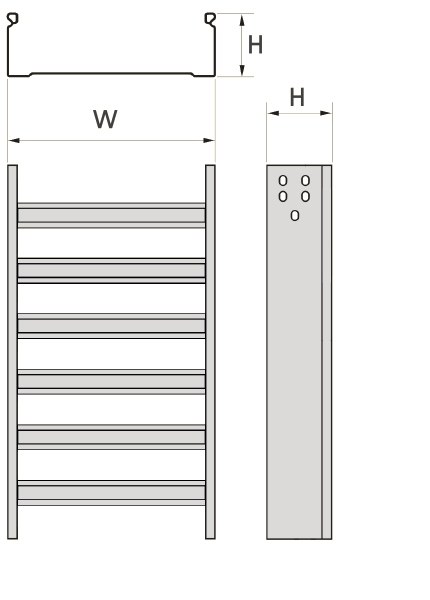

Ladder Cable Tray (Ceiling Type)

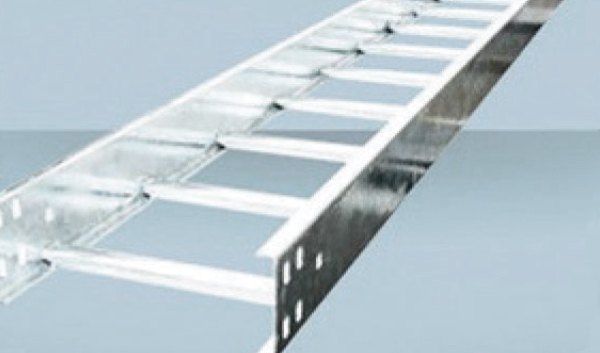

Ladder Tray Section
| Dimensions of each part (Unit: mm) | |||
|---|---|---|---|
| W(with) | L(length) | H(height) | Rung Spacing |
| 120 | 2,400 | 100,150 | 200,300 |
| 200 | |||
| 300 | |||
| 400 | |||
| 500 | |||
| 600 | |||
| 700 | |||
| 800 | |||
| 900 | |||
| 1000 | |||

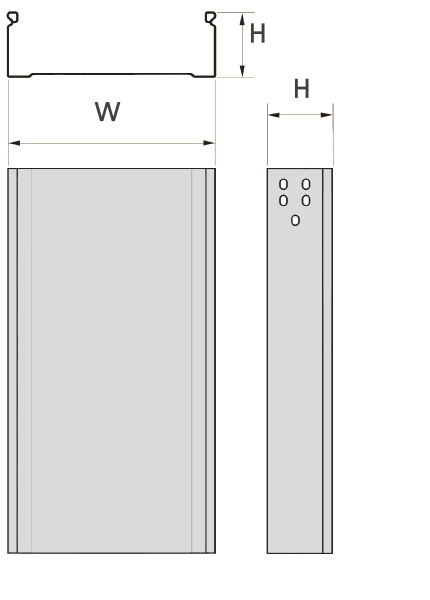

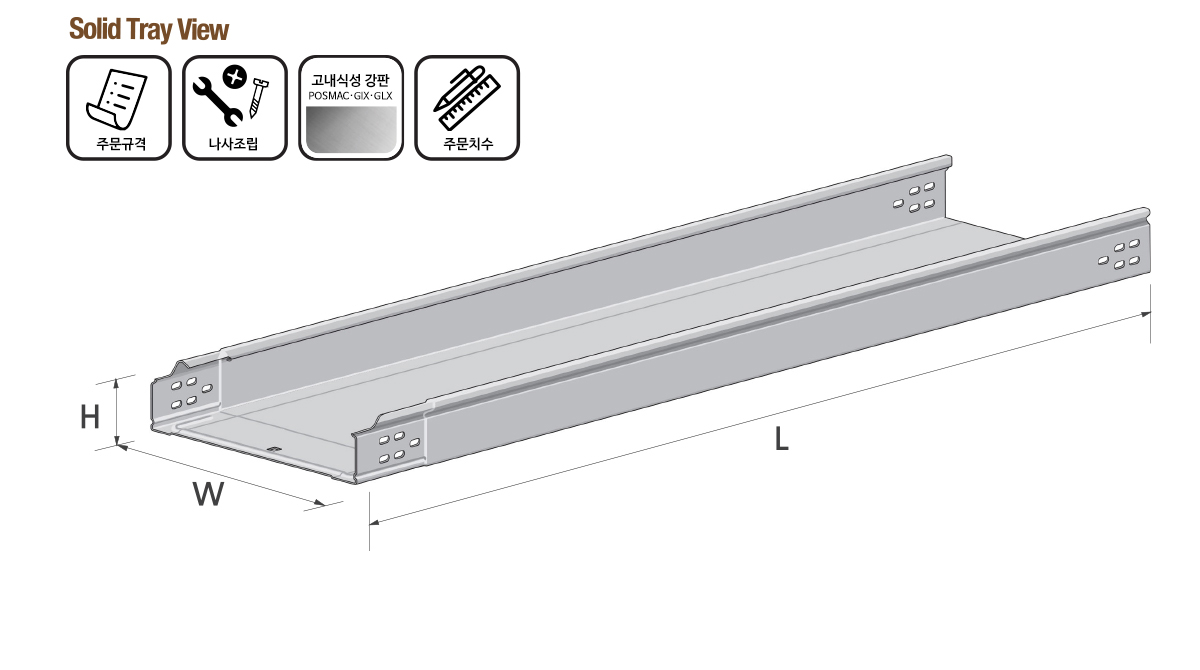

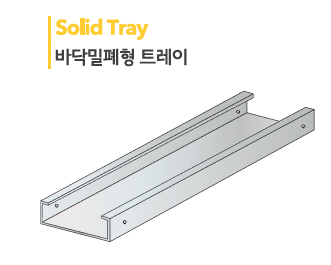

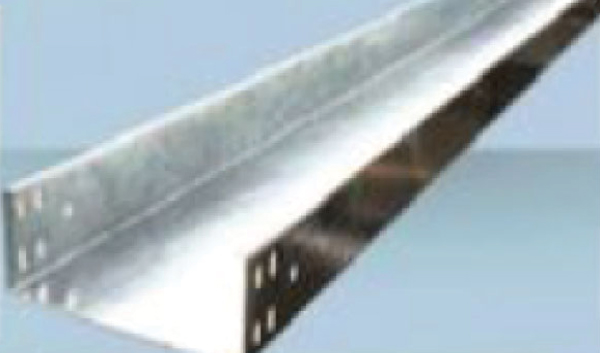

Solid Cable Tray
Solid Tray Section
| Dimensions of each part (Unit: mm) | ||
|---|---|---|
| W(with) | L(length) | H(height) |
| 120 | 2,400 | 100,150 |
| 200 | ||
| 300 | ||
| 400 | ||
| 500 | ||
| 600 | ||
| 700 | ||
| 800 | ||
| 900 | ||
| 1000 | ||

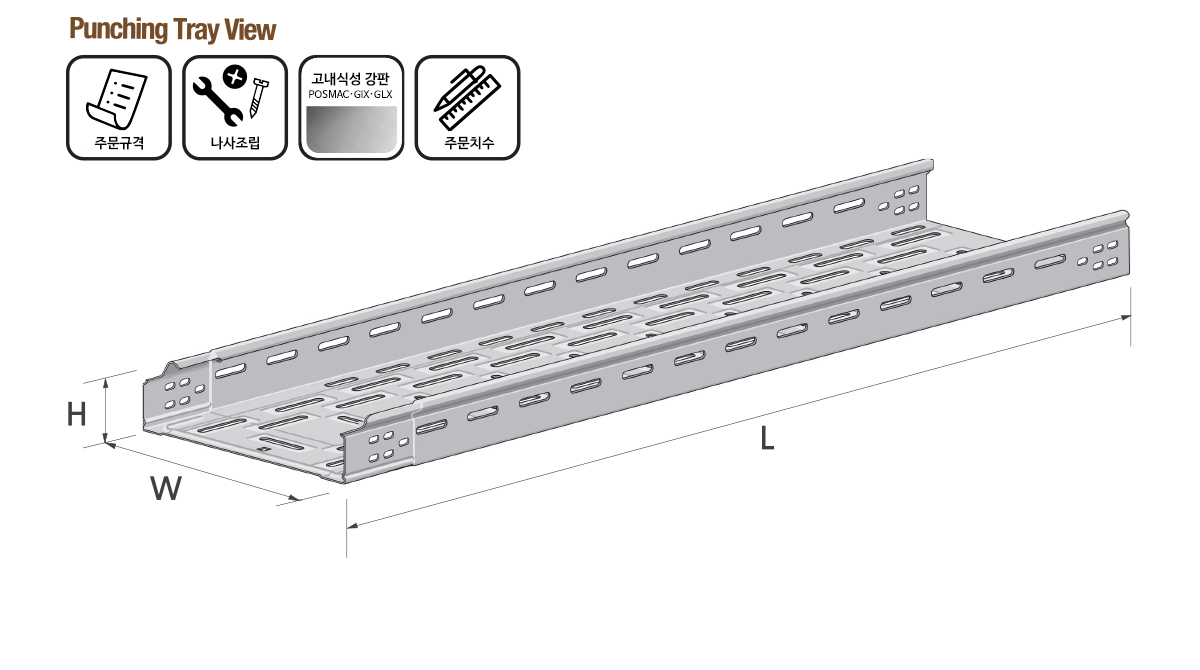

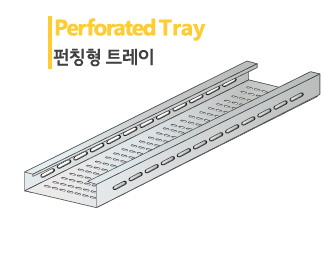

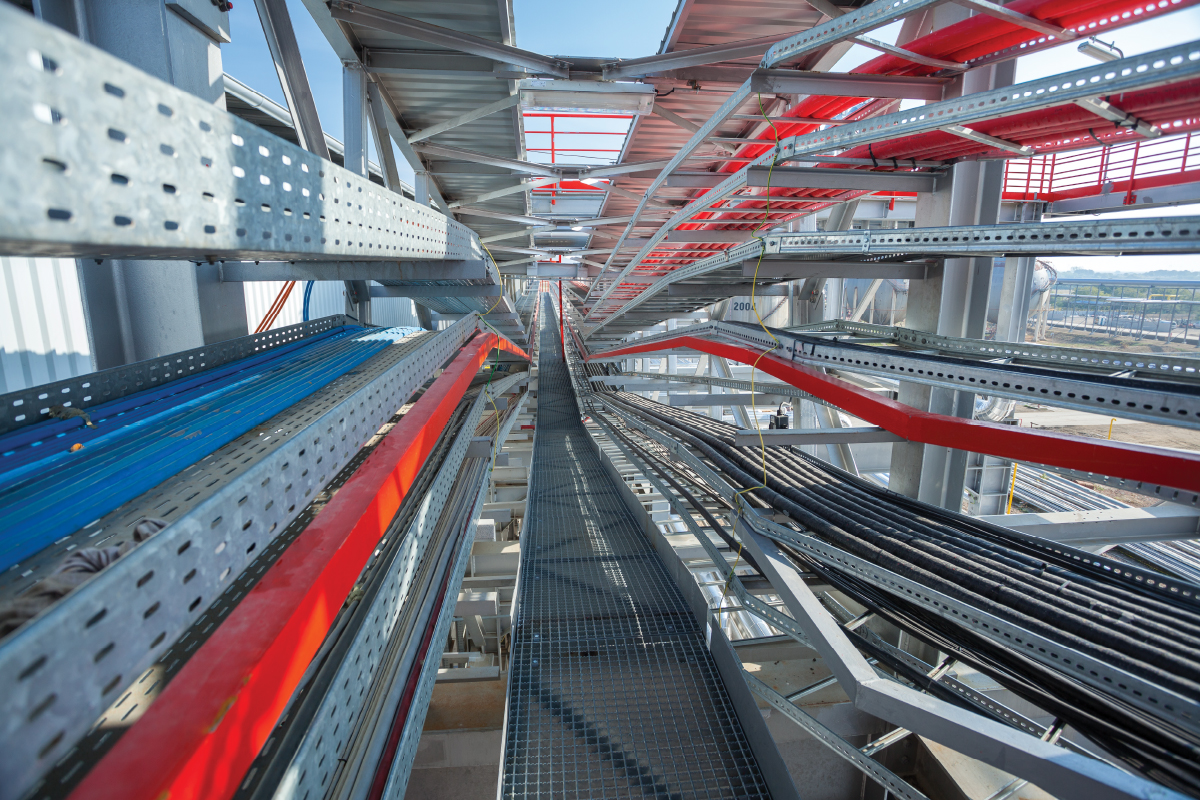

Perforated Cable Tray
punching Tray Section
| Dimensions of each part (Unit: mm) | ||
|---|---|---|
| W(with) | L(length) | H(height) |
| 150 | 2,400 | 35 60 75 100 |
| 200 | ||
| 300 | ||
| 400 | ||
| 500 | ||
| 600 | ||
| 700 | ||
| 800 | ||
| 900 | ||
| 1000 | ||

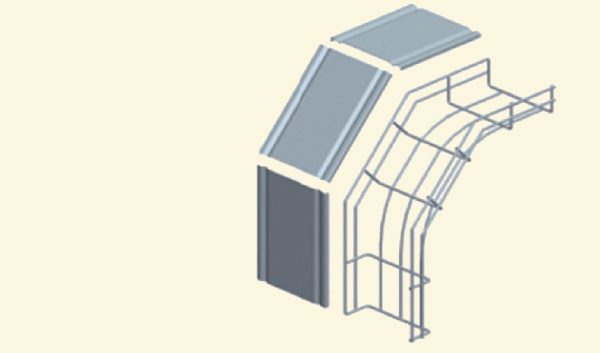

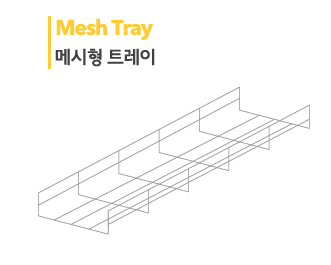

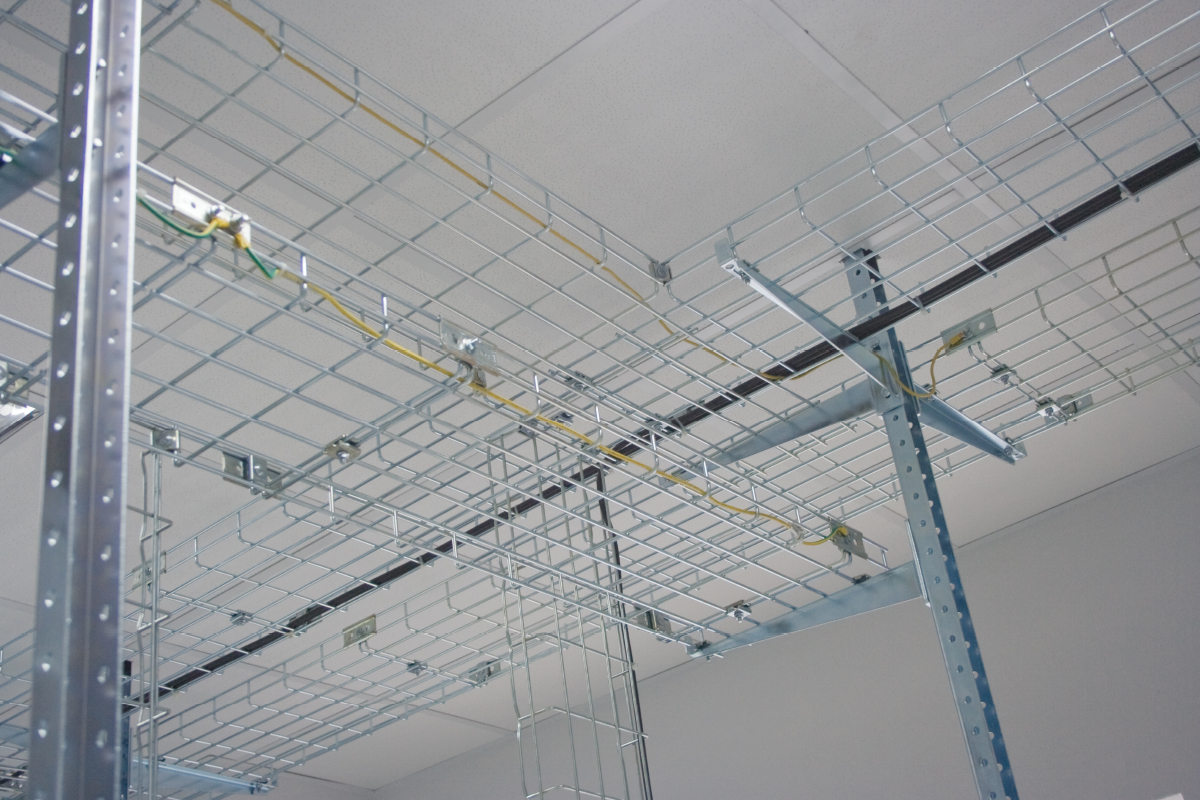

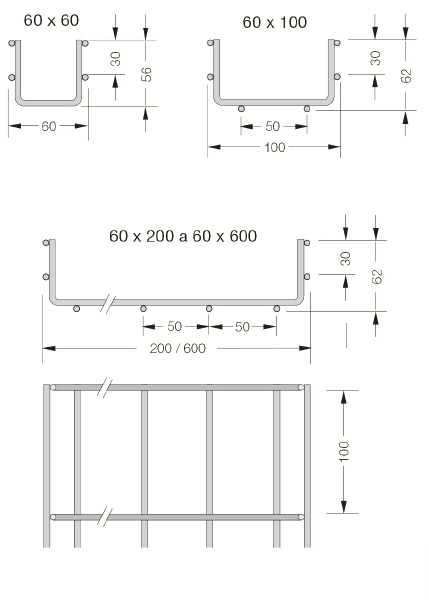

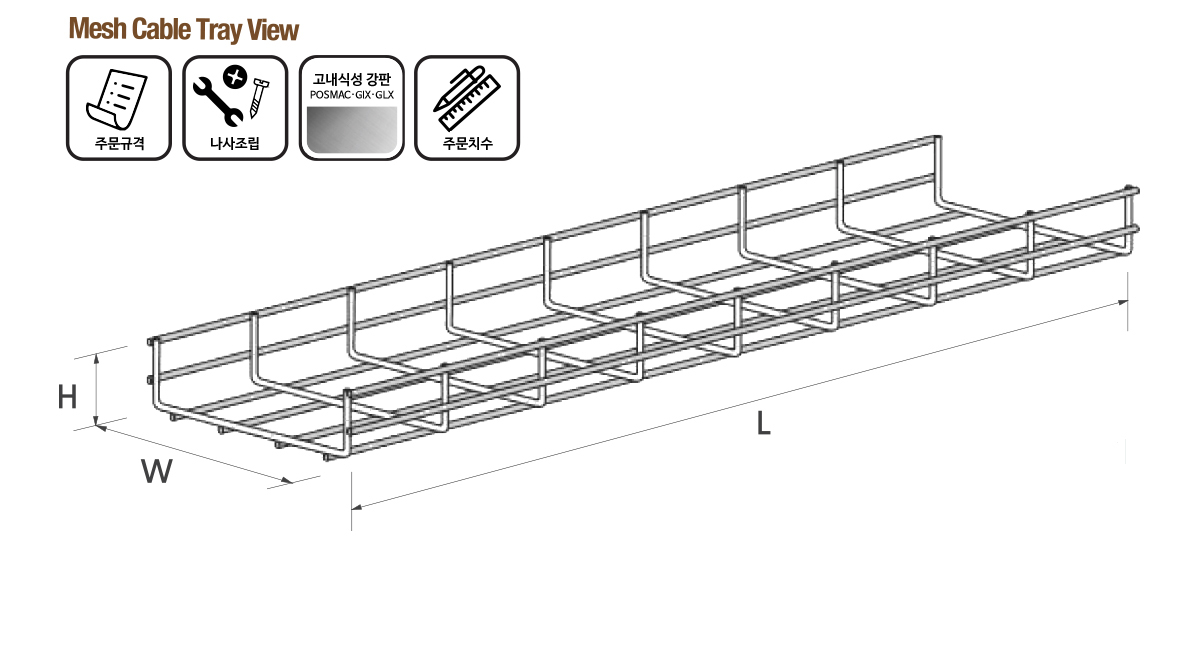

Mesh Cable Tray
punching Tray Section
| Dimensions of each part (Unit: mm) | ||
|---|---|---|
| W(with) | L(length) | H(height) |
| 120 | 2,400 | 100,150 |
| 200 | ||
| 300 | ||
| 400 | ||
| 500 | ||
| 600 | ||
| 700 | ||
| 800 | ||
| 900 | ||
| 1000 | ||
